SmartLife 30Amp Smart Controller
SmartLife 30Amp Smart Controller
Couldn't load pickup availability
Want the ability to make your geyser or pool pump Smart then you need the ASC, is an energy monitoring, scheduling and control device for load management and automation capability.

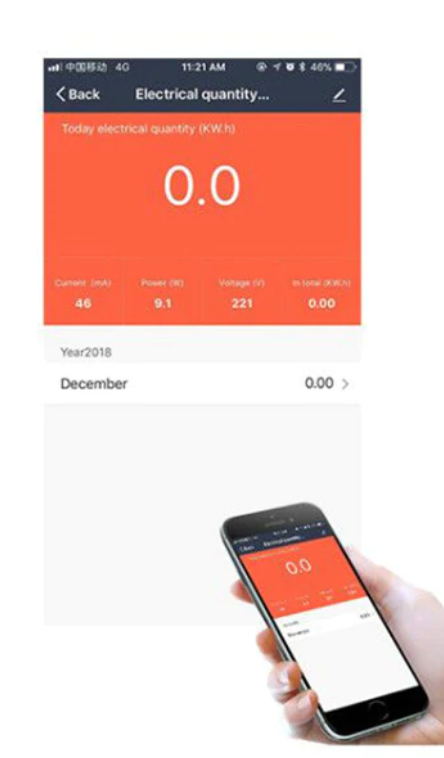

The Smartlife/Tuya App allows you to configure, Current, Voltage, Time, Power, and many other variables or a combination thereof.
Can be used remotely control pool pumps, Lights, Geysers ect.
Features:
- Wifi enabled 2.4 Ghz
- Compact Size
- Energy Monitoring
- Energy Control
- Custom Automations and custom Scenario's
- Service life: 20 000 operations at full load
- Protective Life-up cover - sealable
- Manual On/Off button
- Switched Live contact reduces wiring
- DIN Rail Mount
- No Hub Required
Requirements:
- 2.4 Ghz Wi-Fi with internet connection
- Smartphone or tablet
Approvals:
- SANS 60730-2-7
- ICASA
Technical Data:
| Parameter | Specification |
| Supply Voltage | 230V, 50Hz, 1 Ph |
| Rate Current | 30A resistive 10A inductive |
| Contact Life | 20 000 cycles |
| Degree of ingress Protection | IP40 when installed in the DB |
| Rated input Voltage | 4Kv |
| Terminal Size | 16mm2 |
| Operating Temperature Range | -20 °C - + 55 °C |
| Mounting options |
Din Rail & CBI Mini Rail, (Adpater supplied) |
| Pollution Degree |
2-Normal only non conductive pollution occurs |
| Programmable period |
Week, day, Minute |
| Accuracy |
Dependent on ISP |
| Ball Pressure Test |
125 °C |
|
|
INSTALLATION
- This device must be installed by a qualified electrician
- Isolate supply before installing CB
- Install the CB on Din Rail
- Connect CB according to Figure 2 or 3. Observe Markings for line Terminal
|
LED Status Information |
||||||
|
Power |
Wifi |
Pair Mode |
Output |
LED Status |
Comment |
|
|
Red |
Blue |
|||||
|
Off |
* |
* |
* |
OFF |
OFF |
Power Off |
|
ON |
* |
Unpaired |
OFF |
ON |
OFF |
Not paired and/or no wifi |
|
ON |
* |
Active |
OFF |
ON |
ON Flashing |
Pairing Mode Active |
|
ON |
ON |
Paired |
OFF |
ON |
ON |
Successful connection to Wi-FI and output OFF |
|
ON |
* |
Paired |
ON |
ON Flashing |
ON |
Manual or App Output On |
|
ON |
* |
Unpaired |
ON |
On Flashing |
OFF |
Manual On Only |
