NSPanel Pro Smart Home Control Panel
NSPanel Pro Smart Home Control Panel
Overview

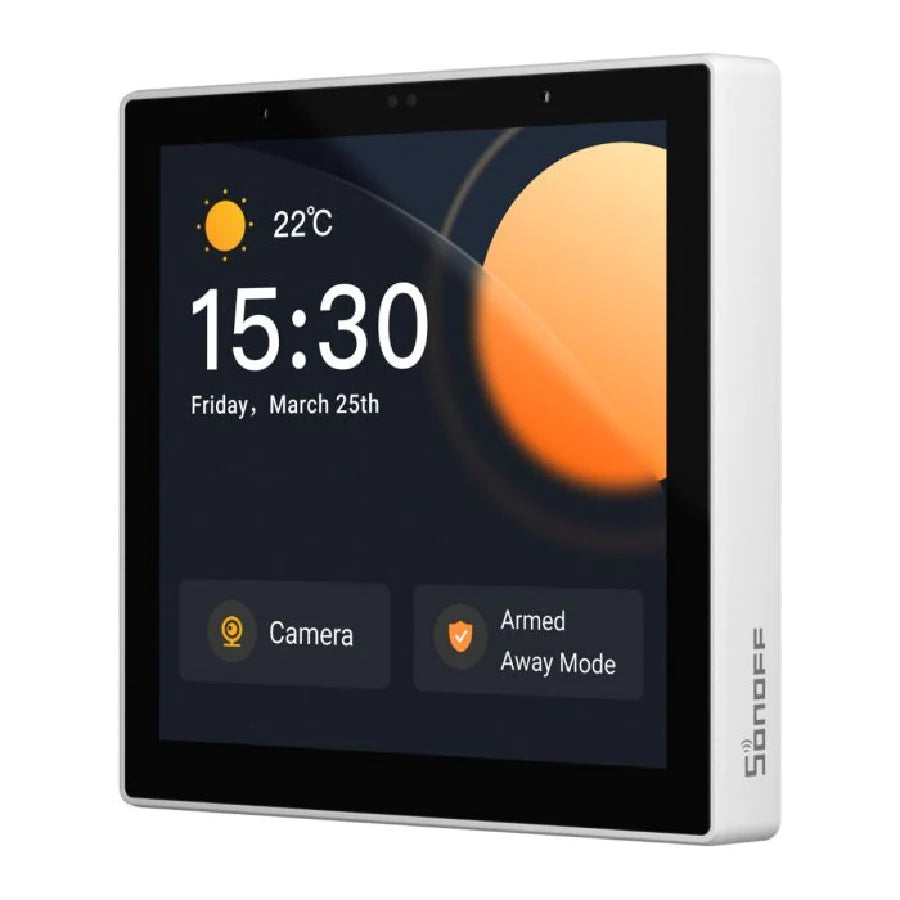

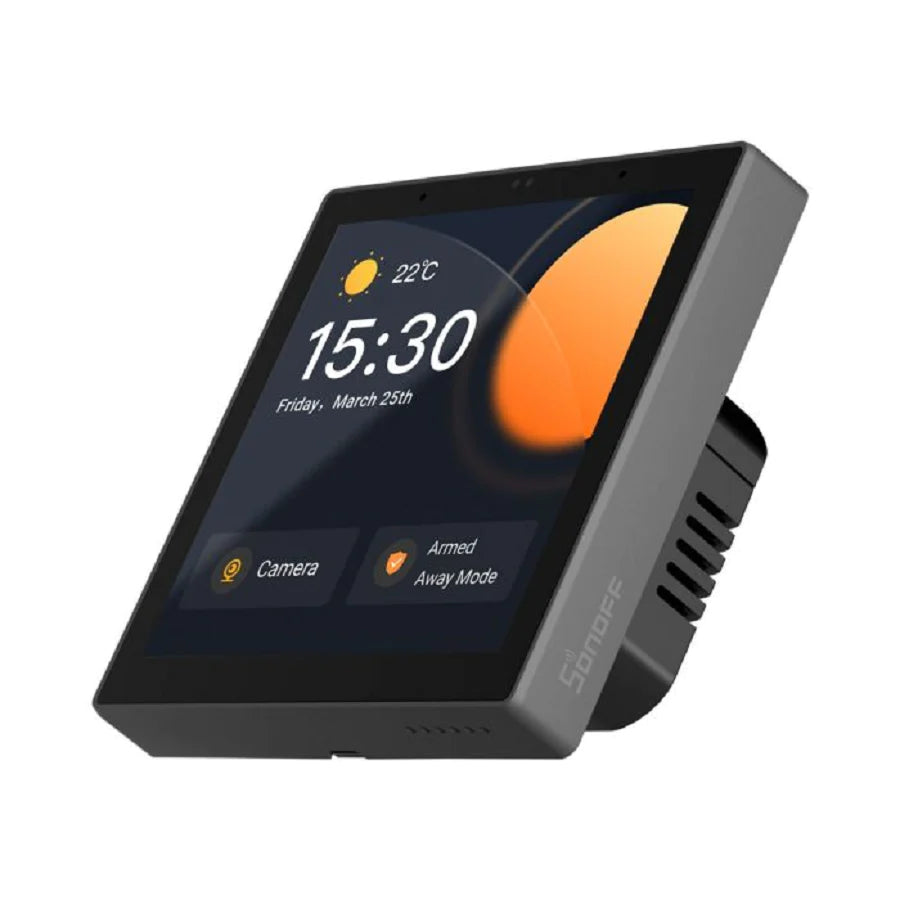

SONOFF NSPanel Pro is a smart home control panel. Your smart lights, switches, heaters, coollers, curtains, and all your smart devices can be controlled. An unlimited number of control devices, all in one panel.
NSPanel Pro can quickly add Zigbee devices on the screen in batches. Standard Zigbee 3.0 protocol makes the connection more stable and the coverage wider. Support all SONOFF Zigbee devices such as Zigbee Sensors, ZBMINI, and BASICZBR3.
NSPanel Pro can be used as a display, supports adding the following four types of cameras for live monitoring. Viewing the real-time monitoring of living room, garage, bedroom, etc on the panel at any time.
Power Consumption Graph, Customize Wallpaper, and Call Intercom...It will update more features and support HA, Matter in the future. NSPanel Pro will be your wonderful choice.
Package includes :
1 * NSPanel Pro
1 * User Manual
Specifications :
Zigbee |
IEEE 802.15.4 (Zigbee 3.0) |
---|---|
Wi-Fi |
IEEE 802.11 b 2.4GHz |
Input |
100-240V AC 50/60Hz |
Max Power Consumption |
5W MAX; 150mA |
TFT Screen Size |
3.95" (Capacitive Screen) |
Screen Resolution |
480 x 480 |
MCU |
PX30 |
CPU |
4-cores Cortex-A35 |
GPU |
Mali-G31GPU |
RAM |
2GB, DDR3 |
ROM |
8GB, eMMC 5.1 |
Dimension | 86x86x39.5mm |
Shell Materials |
PC V0+CRS+Toughened Glass |
|
