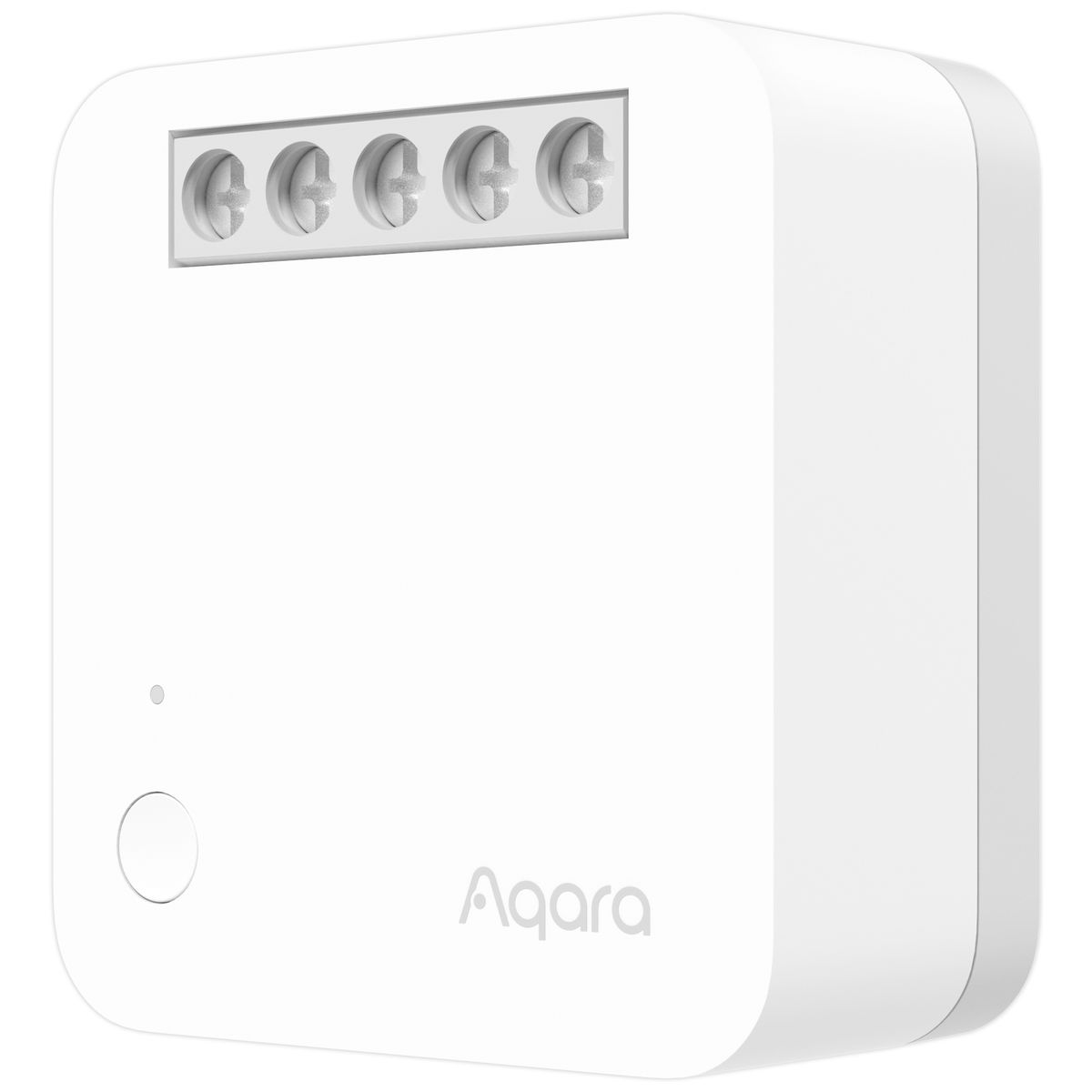

Aqara Single Switch Module T1 (with Neutral) - REQUIRES AQARA HUB

Aqara Single Switch Module T1 (With Neutral) is a relay control module based on Zigbee 3.0 wireless communication protocol, which can control the on/off status of the light, fan, and other devices.
With the Aqara Hub/Aqara G2H Hub Camera, it can realize the remote control through the app, timing control, power detection, power consumption statistics, etc., and can match other smart devices to realize more smart scenes.

MAIN FEATURES:
• Works with Apple HomeKit:
We have desinged this switch module to seamlessly work with Apple HomeKit.

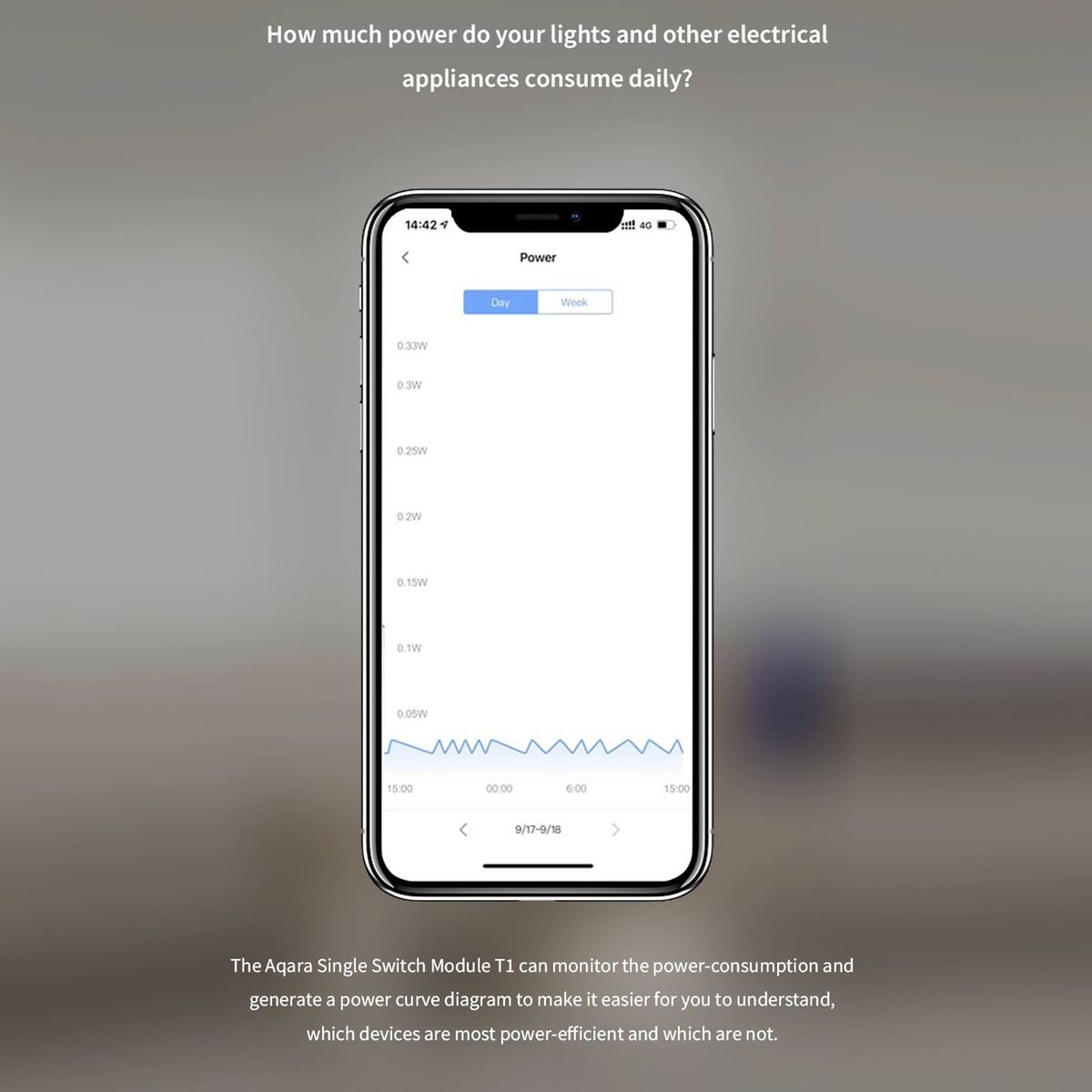

• Power Monitoring:
Check power consumption reports and usage statistics to track the efficiency of your electrical appliances.

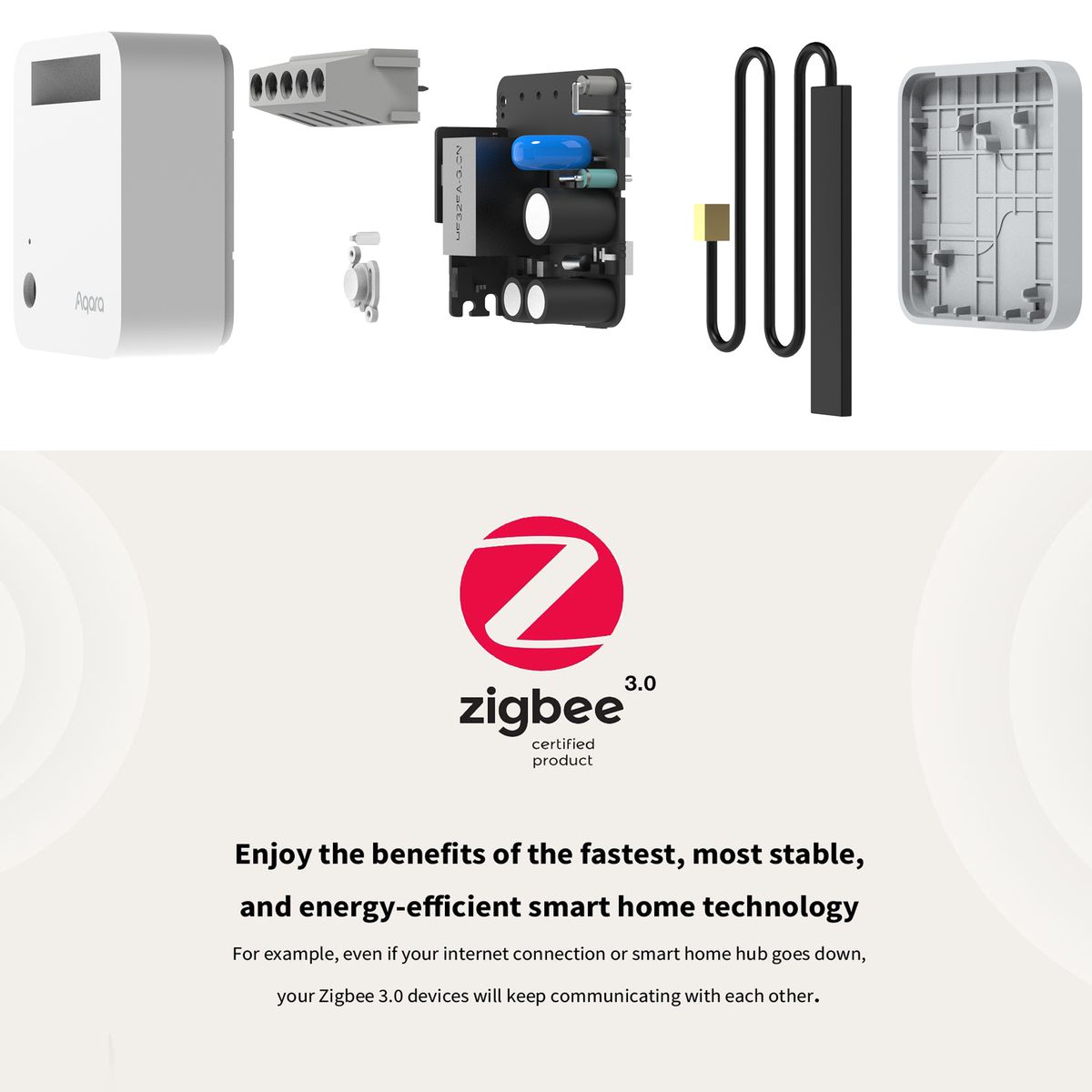

• Zigbee 3.0 Protocol:
Enjoy the benefits of the fastest, most stable, and energy- efficient smart home technology.

• Compact Size:

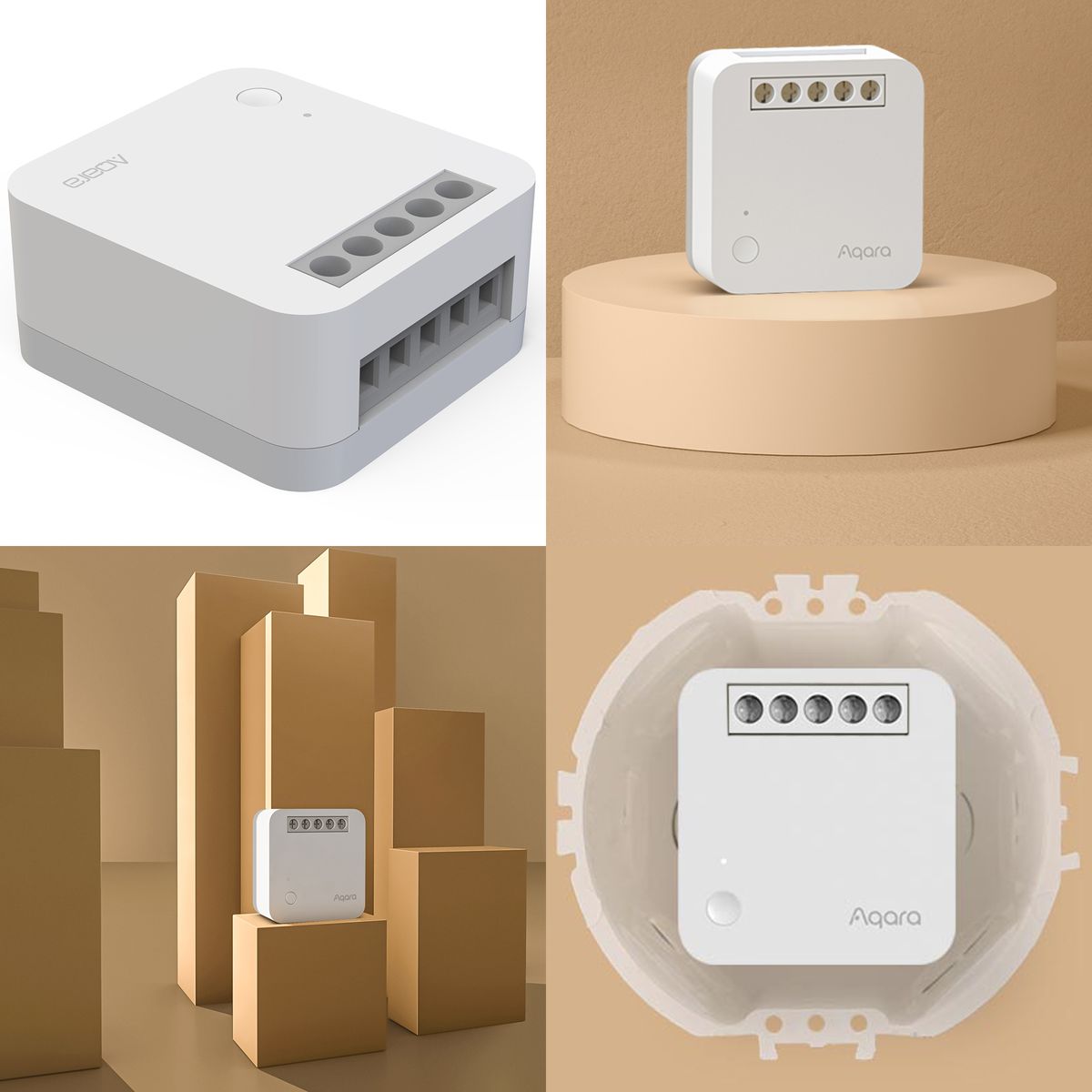

Fits almost any wall box and can be connected to your existing wall switch or outlet.

• 2-Way Switch Support:
Can be connected to your existing 2-way switches and make them smart.

• Power Off Memory:
You will be able to configure if you need the lights to turn on automatically after a power outage.

• Advanced Protection:
With overheat and overload protection, you can be sure your home is safe and secure.

• Timers and Remote Control:
Schedule the usage of your electric appliances, check the status, and control them remotely.

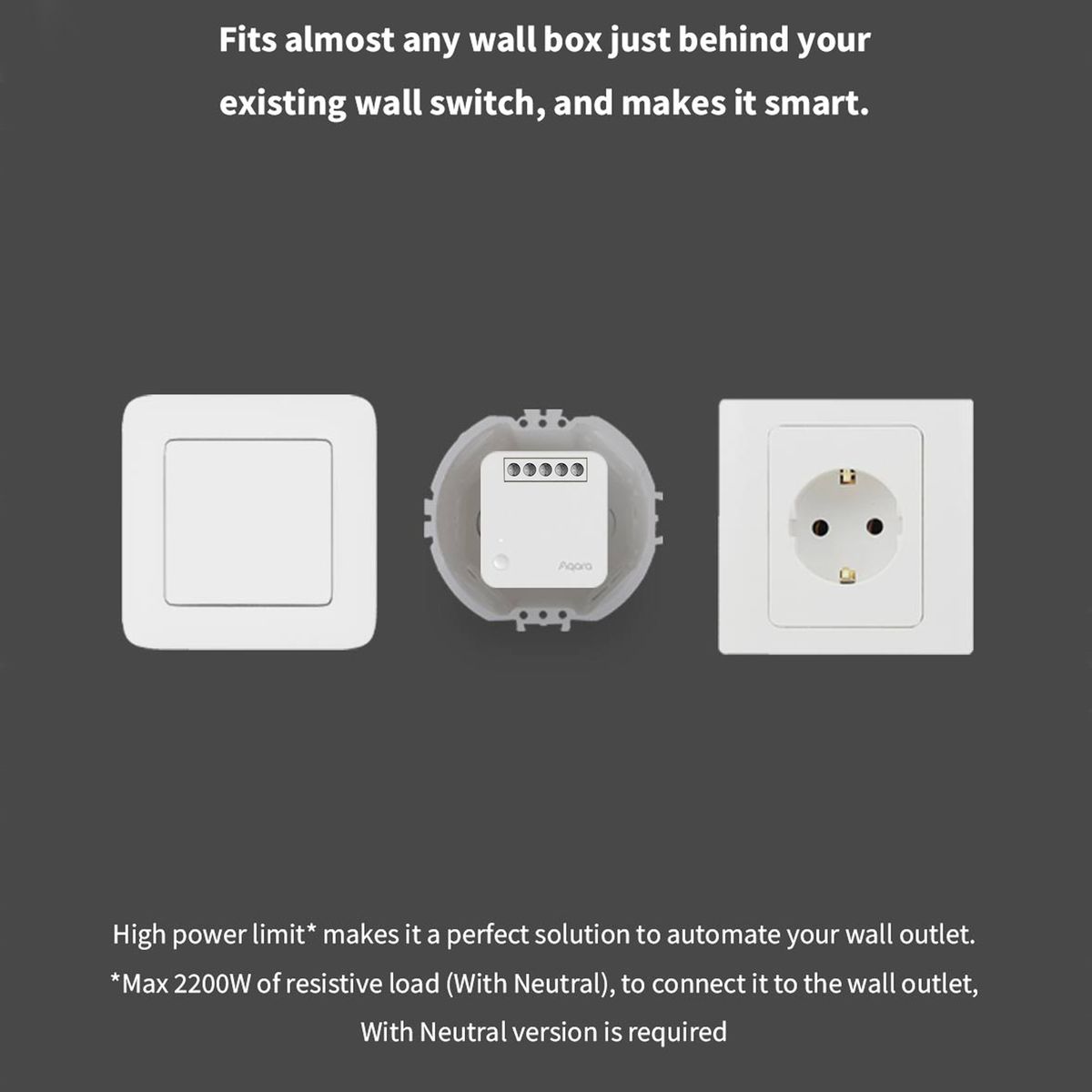

• Wall Light Switch & Plug Socket Box:
Fits almost any wall box just behind your existing wall switch, and makes it smart.
High power limit makes it a perfect solution to automate your wall outlet.
Note: Max 2200W of resistive load (With Neutral); to connect it to the wall outlet, with Neutral version is required

Specifications:
• Product Model:
SSM-U01
• Gross Weight (kg):
0.05
• Wireless Connection:
Zigbee 3.0
• Effective Communication Distance:
30m (indoors)
• Product Dimensions:
42.9x40x19.9 mm
• Input Power:
100-250VAC,50/60Hz
• Wireless Standard:
IEEE 802.15.4
• Operating Temperature:
0 Degrees C to 35 Degrees C
• Product Colour:
White
• Input Current:
MAX 10A (resistive load)
• Wireless Frequency:
2.4GHz (2400~2483.5MHz)
• Operating Humidity:
5% to 95% RH, non-condensing
• Net Weight (kg):
0.03
• Rated Load:
Min 3W, Max 2500W (resistive load), Please do
not overload it. (Please make sure that the 10A over-
current protection circuit breaker on the front end of
this product works normally before it powers on)
• Receiver Sensitivity:
-102dBm
• Storage Temperature:
-10 Degrees C to 50 Degrees C

The live line to supply power. You need to choose one according to your home wiring.

PLEASE NOTE:
• This device requires a compatible Zigbee 3.0 hub.
• To work with Apple HomeKit, an Aqara Hub or Aqara G2H Camera Hub is required.
• This product is for indoor use only.
• Please read the product instruction manual before use.

What's in the box
1x Aqara Single Switch Module T1 (With Neutral)
