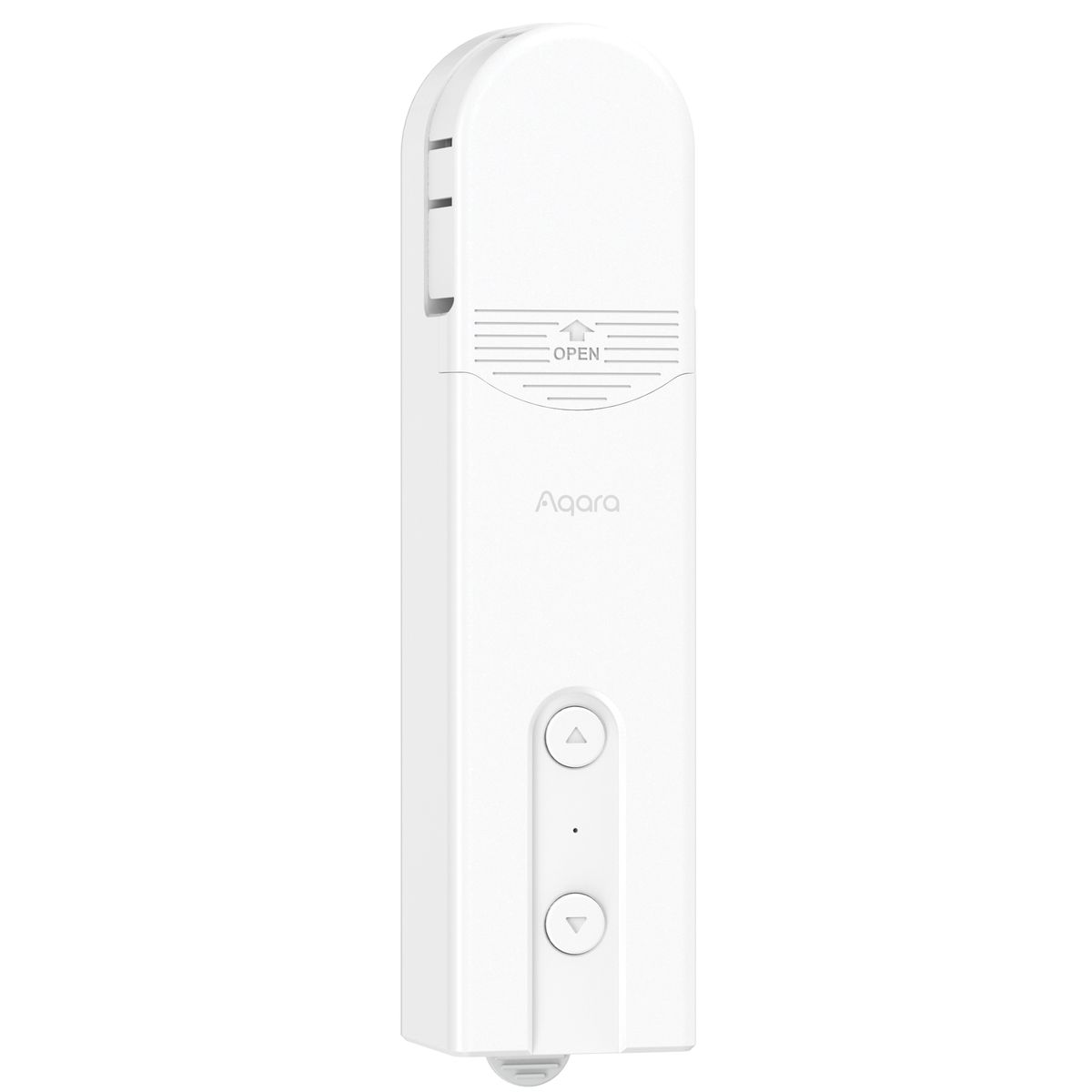

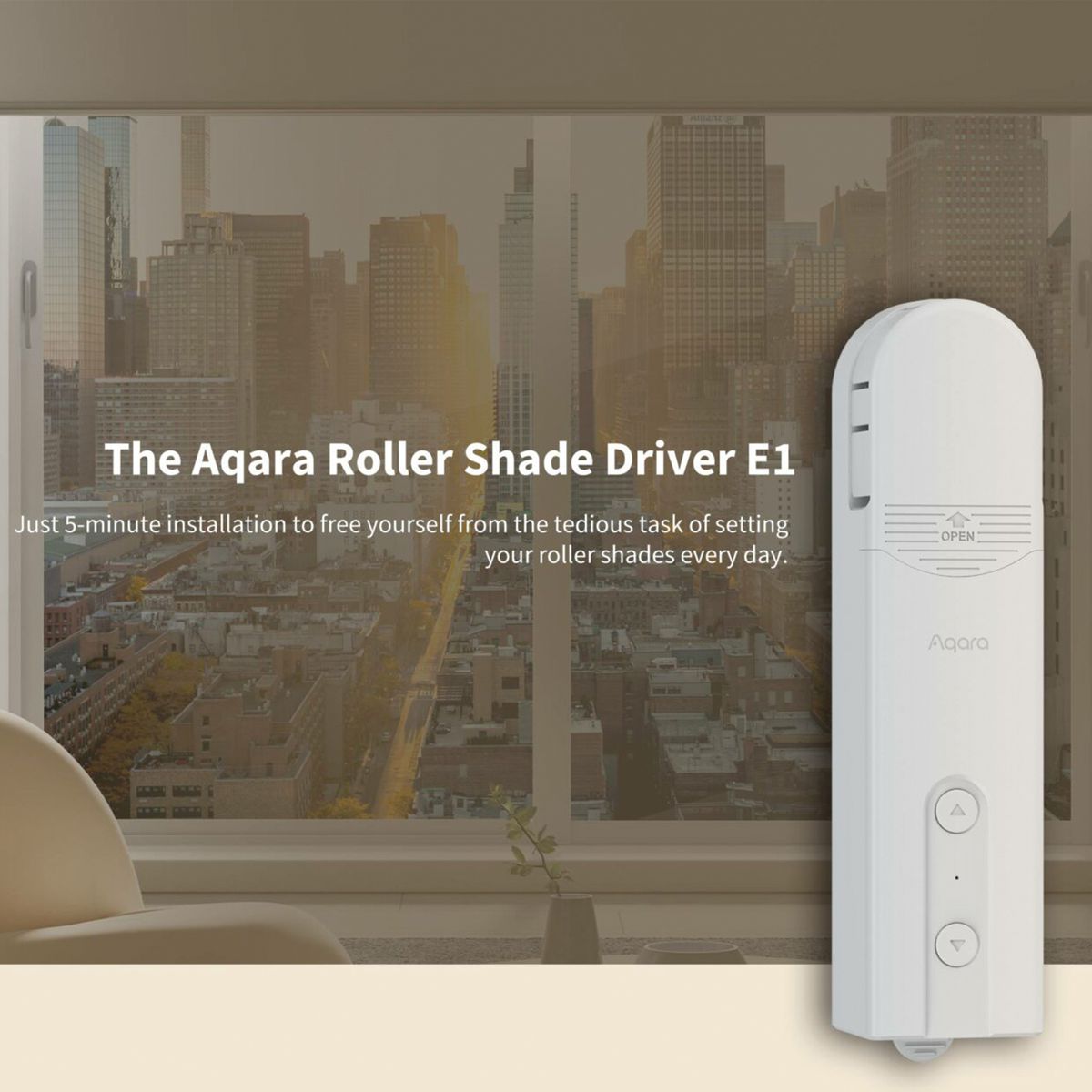

Aqara Rolling Shade Driver E1

The Aqara Roller Shade Driver E1 is a retrofit roller shade controller that does not require a complicated installation and can work with your existing Roller Shade by operating the beaded cord.
It does not require dedicated wiring and can run both wirelessly from the built-in battery or being plugged into a power supply via the provided USB Type-C cable.

MAIN FEATURES:
EASY INSTALLATION:
Just screw the device to the wall, attach the adapter, insert the beaded cord of your roller shade, and you’re ready to be connected.

ZIGBEE 3.0 PROTOCOL:
Enjoy the benefits of the fastest, most stable, and battery-efficient smart home technology. Better stability and compatibility (more standardized protocol), longer support, and more features.

2-MONTH BATTERY LIFE:
Thanks to Aqara and Zigbee battery-saving technologies, industry-leading battery life can be achieved. You don't need to worry about charging the device every few weeks.
Calculated on the basis of rolling and unrolling the roller shade of 1.8m x 1.8m once a day.

USB TYPE-C FOR CHARGING OR CONSTANT POWER SUPPLY:
You can choose between two installation modes: wired fixed or wireless portable.
For both charging or powering the device constantly, a future proof USB Type-C port is used.

The Motion Sensor located at the top of your bed will detect when you are going to bed and will trigger the Roller Shade Driver E1 to close your roller blinds to make your sleep more comfortable.

(Aqara Roller Shade Driver E1 + Hub + Motion Sensor)

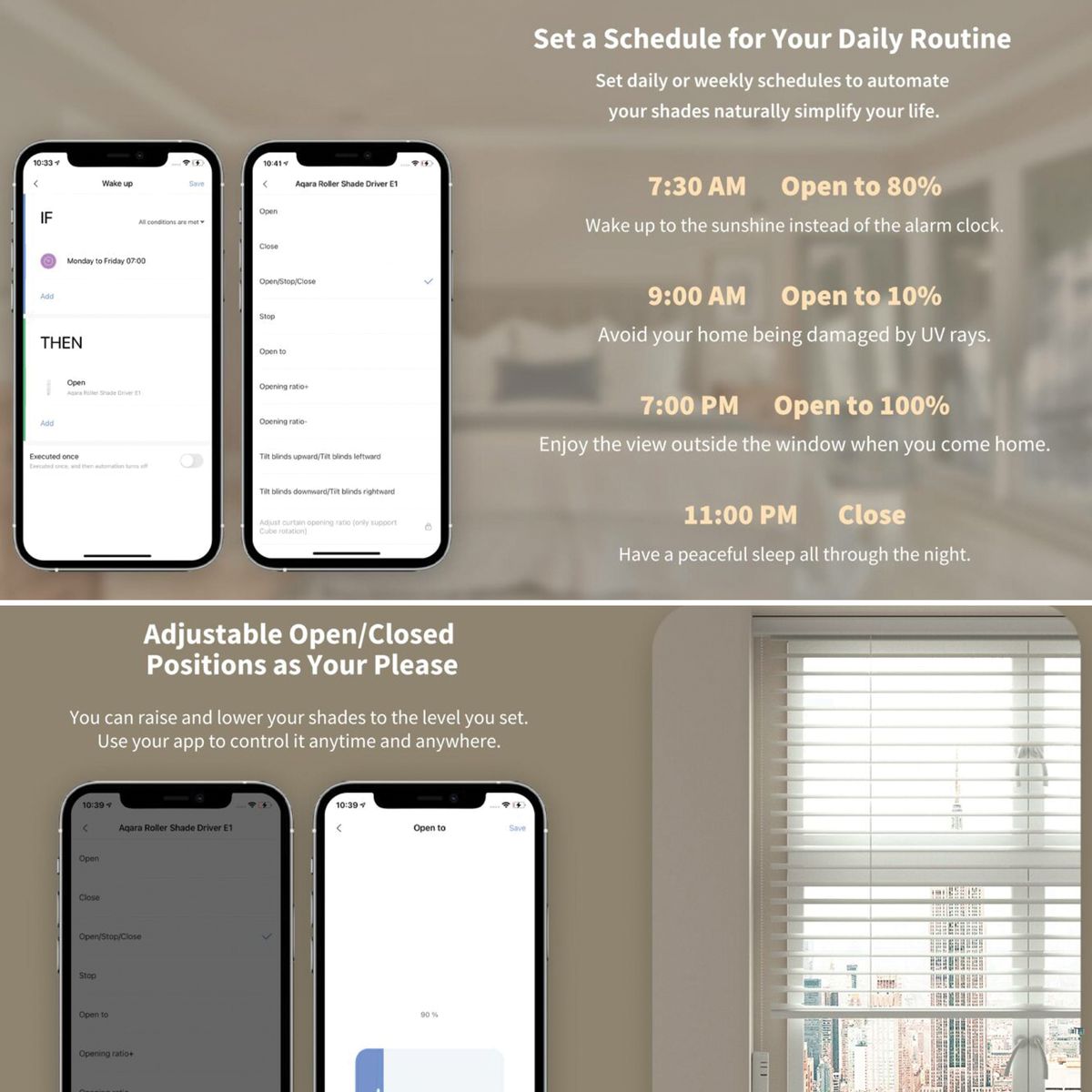

Roller shades will roll up automatically by the schedule.

On weekday mornings, the roller shades will roll up right before you wake up in order to make it more pleasant.
At the same time, they will be kept down during the weekends so you can sleep a little later.

(Aqara Roller Shade Driver E1 + Hub)

SPECIFICATIONS:
- Model: RSD-M01
- Wireless Protocol: Zigbee 3.0 IEEE 802.15.4
- Dimensions: 42mm × 37mm × 165mm
- Operating Temperature: -10 Degrees C to 55 Degrees C
- Battery Type: Lithium battery (not replaceable)
- Rated Input: 5V-1A
- Total Power Consumption: 5W
- Standby Time: Two months (based on controlling a roller shade of 1.8m x 1.8m up and down once a day)
- Operating Humidity: 0~95% RH, no condensation
- Colour: White
- App: Apple Home app (iOS 10.3 or later), Aqara Home app (Android 5.0 or later, iOS 10.3 or later)
- Regulatory Certification: ICASA (for South Africa), NRCS and CE and EAC

PLEASE NOTE:

- An Aqara Zigbee 3.0 hub is required (Aqara Hub M1S, Aqara Hub M2, Aqara Hub E1, Aqara Camera Hub G2H, Aqara Camera Hub G3 and newer hubs).
- One Aqara ZigBee 3.0 Hub can connect up to 128 Aqara devices.
- Aqara Hub requires a secured 2.4 gigahertz WiFi network connection.
- To control this Apple HomeKit-enabled accessory, iOS 10.3 or later is recommended.
- Controlling Apple HomeKit-enabled accessory automatically and away from home requires an Apple TV with tvOS 10.2 or later or an iPad with iOS 10.3 or later or a Home Pod set up as a home hub.

INSTRUCTIONS:
Roller Shade Driver E1 is a Zigbee 3.0 smart product that can help you control the bead chain of your shades/blinds and transform your existing roller shade into a smart one.
With an Aqara Zigbee 3.0 hub, it can realize functions such as remote control and timing control via the Aqara Home app, and work with other smart devices to form a smart home system.

Preparation Before Use:
1. A smartphone or tablet that supports Wi-Fi or a cellular network (with iOS or Android system) is required.
2. An Aqara Zigbee 3.0 hub is required (The distance between this product and your hub should be within 30 m).
3. Download and install the Aqara Home app.
4. A drilling machine is required (must be equipped with a diameter of 5mm drill bit).
5. Please make sure that there is a Wi-Fi connection and your internet connection is stable.
6. Please charge the Roller Shade Driver E1 for about 2 hours and 30 minutes.
7. The mass and the dimension of the shade to be driven shall be compatible with the rated torque and rated operating time.
8. Note: The accessories are only compatible with bead chains that have beads with a thickness of 3-6 mm.

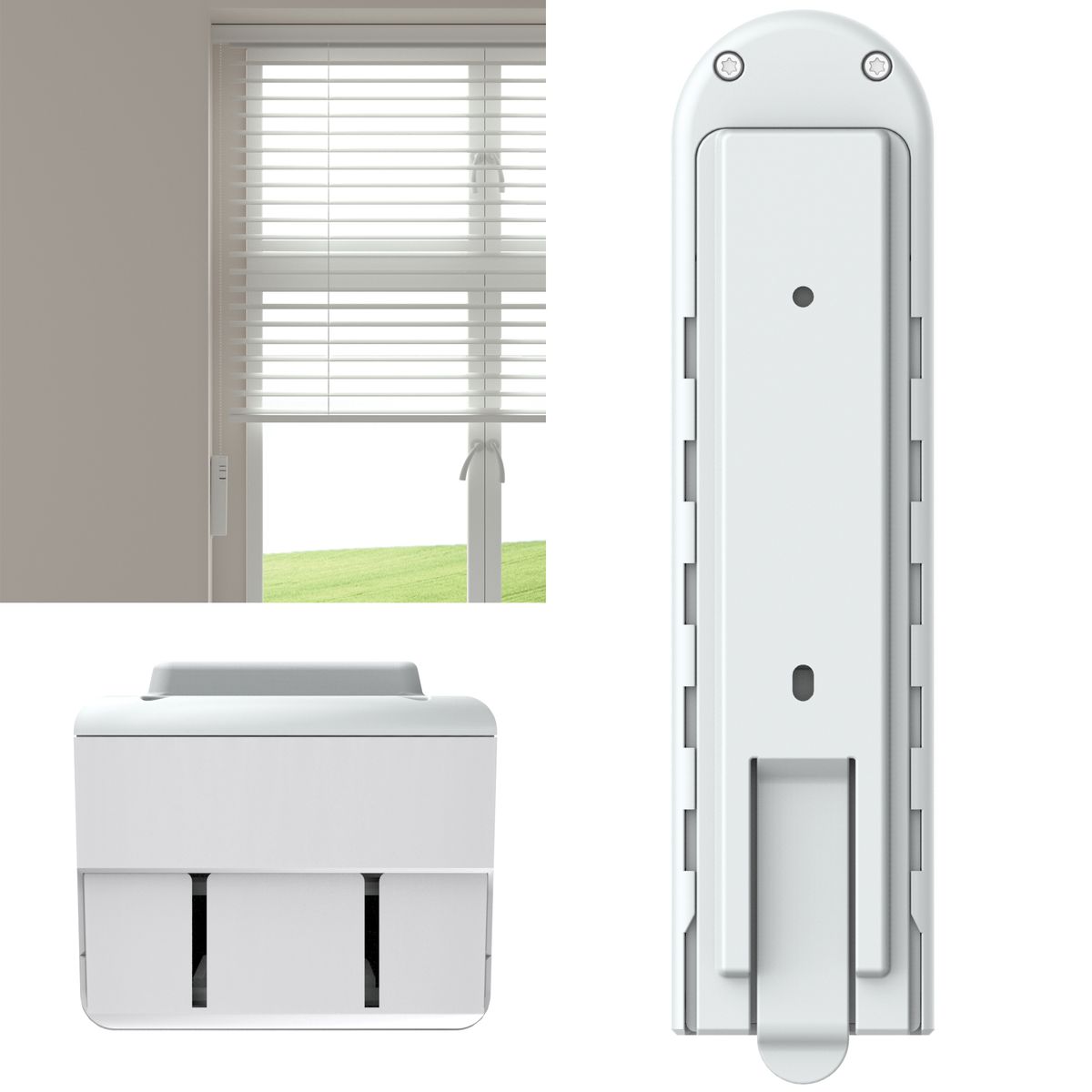

Remove the back cover of the device and fix it at the position about 3-5 mm down from the mark.
Use screws to fix the product. After fixing the back cover, install the device together with the bead chain back on the back cover.
Push the handle to remove the back cover.

Remove the protection sheet on the head cover, and install the head cover back on the device. The installation is complete.

To Charge the Device:
When the USB cable is plugged in, the indicator will turn to blue and blink for 3 times.
With the USB cable plugged in, the indicator will turn to red until the battery is fully charged.
If the battery is fully charged, the indicator will be turned off.

What's in the box
1x Aqara Roller Shade Driver E1
2x Screw
2x Expansion Tube
1x Double-Faced Adhesive Tape
3x Spare Rotating Plate
1x USB-C to USB-A Charging Cable
1x Instruction Manual
