The Ajax Relay is a wireless, low-current relay built to control appliances remotely such as Gates, Garage motors, Electric locks etc.

When used in conjunction with the Ajax system, the Relay allows you to make use of automation scenarios so your security system not only reports threats but also actively counters them. The dry contact is not galvanically connected to the device power supply so that it can be used both in low-voltage and household networks. The relay can easily be connected to a power supply unit paired with a backup battery.

• Power supply: 7 – 24 VDC
• Maximum load current: 5A at 36 VDC, 13A at 230 VAC
• Relay: NO/NC
• Operating frequencies – 868.0 – 868.6 MHz
• Dimensions: 39 × 33 × 18 mm

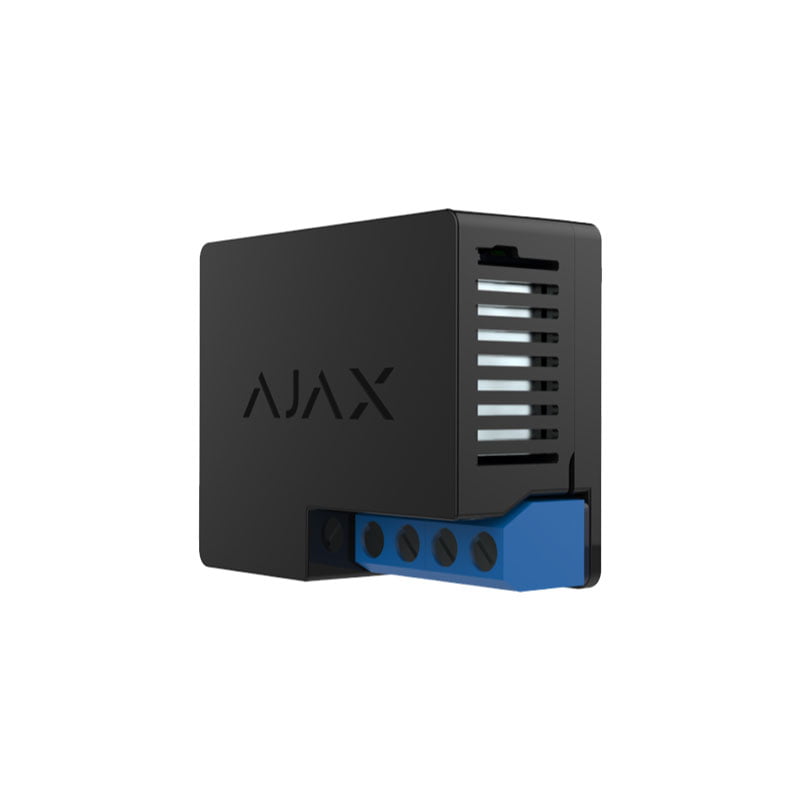

Ajax Relay

A wireless remote control module that allows for one-click mobile app control of low voltage devices

• Used for controlling devices such as Gate and Garage motors, Electric locks and other low current devices
• Automatic shutoff during surges and overheating
• Voltage level information is available in the mobile app
• 7-24VDC voltage source
• Operates in both Pulse and Bistable modes

Use scenarios to program actions of automation devices (Relay, WallSwitch or Socket) in response to an alarm, Button press or schedule. A scenario can be created remotely in the Ajax app.
